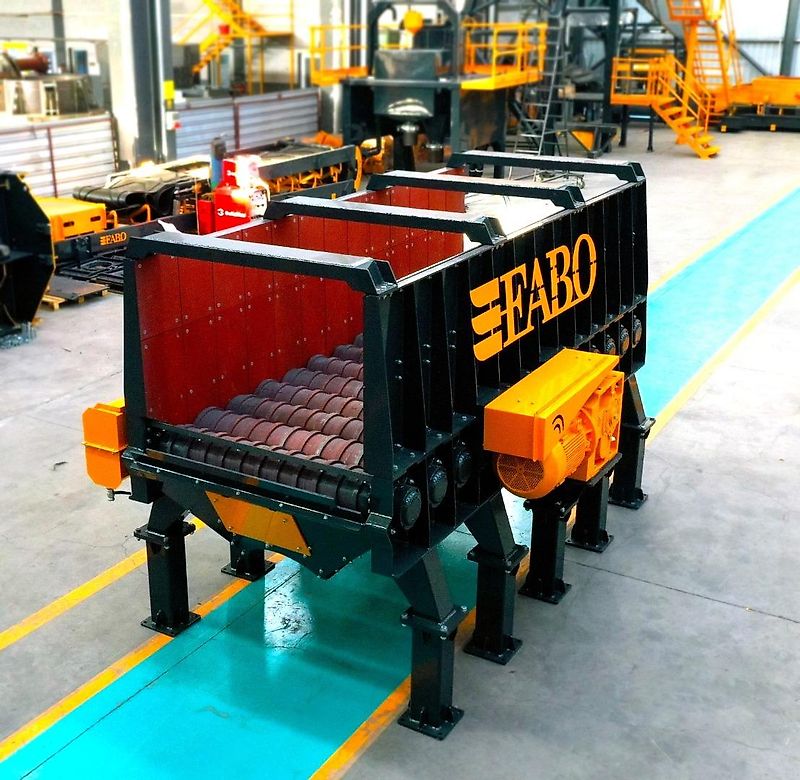

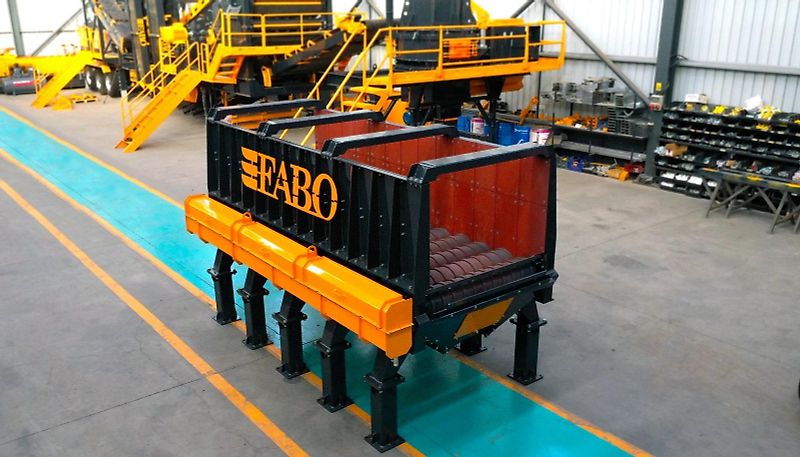

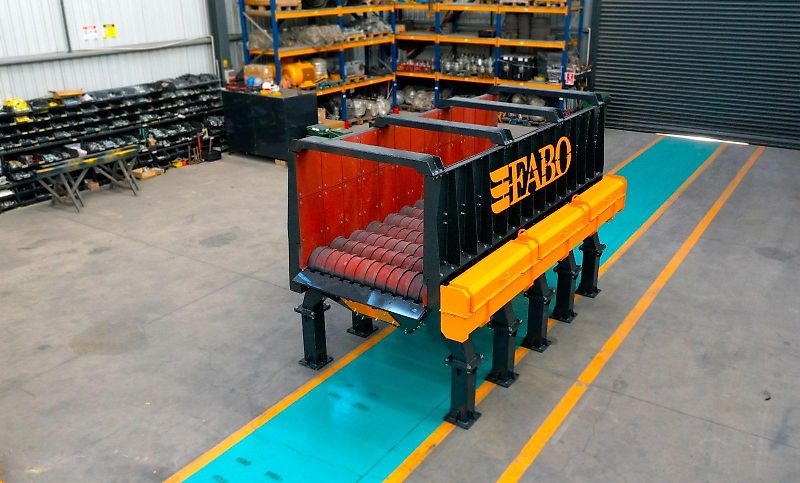

Fabo HIGH QUALITY WOBBLER FEEDER

Täiendavad kirjeldused

• The Fabo Wobbler feeders are designed to feed sticky, wet and large materials comfortably and clean to the crusher with an ellipse-shaped bar and unique motion mechanism. With its self-cleaning structure, it eliminates the problem of obstruction and stone compression.
• Work with wet and sticky materials without clogging and jamming.
• Adjustable feed rate.
• It occupies less space and has smaller height.
• It works without dust, vibration and noise.
• Low power consumption and maintenance frequency.
• Width: 1400 mm
• Length: 2500 mm
• Motor power: 22 kW
• Bar number: 5-9
• Elliptical bar shape
• Aperture: 25-150 mm
• Feeding size 50-1.500 mm
• Chainy drive system
• Max. Capacity 200-300 T / s
• Capacities calculated according to the specified material density (1.6 tn/m3)
